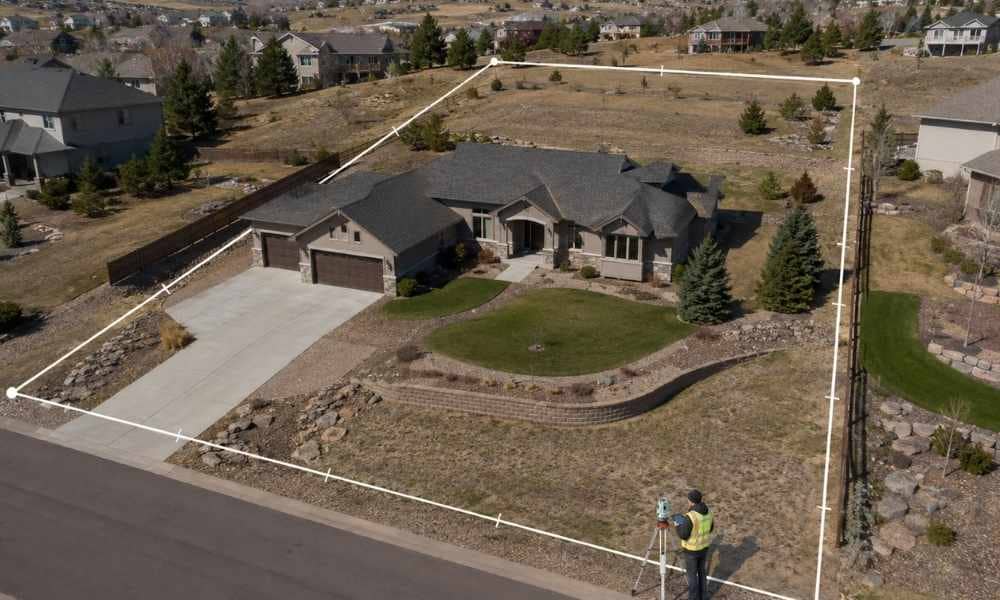

Most homeowners picture a boundary line survey as someone walking the yard, looking for metal pins or concrete monuments at each corner. That part is real. But it’s only a piece of the job.
A survey does more than mark four points. It shows how those points connect, how the parcel is shaped, and what the field crew found while working the site. That connected picture often matters more than any single stake in the ground.

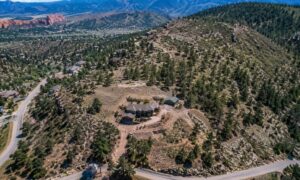

This shows up often in Colorado Springs. Some neighborhoods sit on plain, rectangular lots platted decades ago. Others have irregular shapes, sloped terrain, or lots that sit along curved streets. A survey built around single points can miss what makes these properties different.
The Boundary’s Shape Can Matter as Much as Its Endpoints
A boundary line isn’t always a straight run between two markers. Two corner pins can each be correct on their own, yet the line connecting them might curve or bend in a way a simple straight line wouldn’t show.
This is why the survey drawing matters. It shows the full shape of the parcel, not just the end points. You can see the angles, the curves, and how each side connects to the next.
Colorado law backs this up. Under C.R.S. 38-51-106, a land survey plat must include a scale drawing of the property boundary, along with the field-measured dimensions used to set that boundary. This isn’t optional. It’s part of what makes a plat valid in Colorado.
In Colorado Springs, this comes up often near curved streets. The city has noted that most property lines run straight between corners, but some are actual curves rather than straight lines. Assuming a straight “pin-to-pin” line without checking the drawing can lead you to the wrong conclusion about where your boundary really runs.
A Survey Can Put the Property’s Dimensions Into Context
A single measurement on its own doesn’t tell you much. A distance of 120 feet means little without knowing where it starts, where it ends, and how it fits with the rest of the parcel.
Field measurements only make sense together. Each dimension connects to the next, forming a closed shape that represents your property as a whole.
This is why the finished drawing matters more than any one number written on it. Looking at the full set of dimensions, you can see how the front line relates to the side lines, how the depth of the lot compares across its width, and whether the overall shape matches what you expected.
For a property, this can be useful when comparing what’s on record to what you see standing on the lot. A parcel that looks square from the street may turn out to be a different shape once the full set of dimensions is laid out on paper.
Boundary Information Can Be Tied to the Property’s Surroundings
Fieldwork often records more than the boundary line itself. Depending on what was requested, a surveyor may note nearby physical features observed while working the site. This gives the boundary a spatial reference point beyond the four corners.
How much of this shows up depends on the scope of the survey. A basic boundary survey may focus only on the property lines. A more detailed survey may include additional field observations. Ask your surveyor what’s covered before the crew starts, so you know what to expect on the finished drawing.
This distinction matters because a casual look at a property doesn’t always match what a survey records. What you assume about your lot from walking it once isn’t the same as what gets measured and documented by a licensed crew. The survey shows the boundary in relation to what was actually observed in the field, not what looks obvious from the driveway.
Colorado Survey Documentation Adds More Than a Set of Stakes
Field markers don’t last forever. Wood stakes get mowed over. Flags fade in the sun. Even iron pins can end up buried under new landscaping within a year or two.
The plat is different. Colorado law requires a land survey plat to include a scale drawing, field-measured dimensions, a description of monuments found and set, a stated scale, and a north arrow, among other items listed in C.R.S. 38-51-106. That drawing stays accurate long after the temporary field marks are gone.
This means the lasting value of a boundary survey isn’t the stakes in your yard. It’s the recorded drawing you can pull out months or years later. If you’re planning a fence, a shed, or any project near your property line down the road, that drawing is what you’d check, not a memory of where a flag used to sit.
This isn’t legal advice, just a description of what state law requires surveyors to include on a plat. If you have questions about how a specific requirement applies to your property, ask your surveyor to walk you through the plat directly.
What to Ask Your Surveyor to Show You After the Fieldwork
Once the fieldwork wraps up and you have your drawing in hand, sit down with your surveyor and go over it. A few questions worth asking:
- Which parts of the boundary were physically marked in the field?
- What does each notation on the drawing mean?
- Which measurements matter most for future reference?
- Are there parts of the boundary that need extra explanation?
- What should I keep on file for future property work?
Going through these questions turns a stack of paper into something you actually understand. You don’t need a surveying background to follow along. You just need to ask, and let your surveyor walk you through what’s in front of you.
